If your Whirlpool washer is displaying the Whirlpool washer F5E2 error code, it usually means there is a problem with the door lock system. In many cases, the washer door is not locking or unlocking properly, preventing the cycle from starting or finishing correctly.
The good news is that you can often fix the Whirlpool washer F5E2 error code yourself using a few simple troubleshooting steps.
Quick Answer
The Whirlpool washer F5E2 error code typically indicates a door lock issue. To fix it, unplug the washer, inspect the door latch, clean debris around the lock mechanism, check wiring connections, and reset the washer. If the error continues, the door latch assembly may need to be replaced.
What Does the Whirlpool Washer F5E2 Error Code Mean?
The F5E2 error code on Whirlpool washers usually points to a door lock malfunction. The washer’s control board is unable to confirm that the door is locking or unlocking correctly.
Common causes include:
- A misaligned washer door
- Dirt or debris blocking the latch
- A faulty door lock assembly
- Loose wiring connections
- A control board communication issue
This issue is common on many Whirlpool front-load washers.
Signs of a Whirlpool Washer F5E2 Error
You may notice several symptoms when this error occurs:
- Washer will not start
- Door stays locked after cycle
- Washer stops mid-cycle
- Repeated clicking sounds from the door lock
- F5E2 code appears on display
If your washer also struggles to drain properly, you may want to read our guide on How to Fix an LG Washer OE Code.
Before You Start
Tools You May Need
- Soft cloth
- Flashlight
- Small brush
- Phillips screwdriver
- Multimeter (optional)
Safety Tip
Always unplug the washer before inspecting internal components.
Step 1: Unplug the Washer
Why This Helps
A simple reset can sometimes clear temporary communication errors between the control board and door lock system.
How to Do It
- Unplug the washer from the outlet.
- Wait at least 5 minutes.
- Plug the washer back in.
- Try running a short cycle.
If the error returns, continue with the next step.

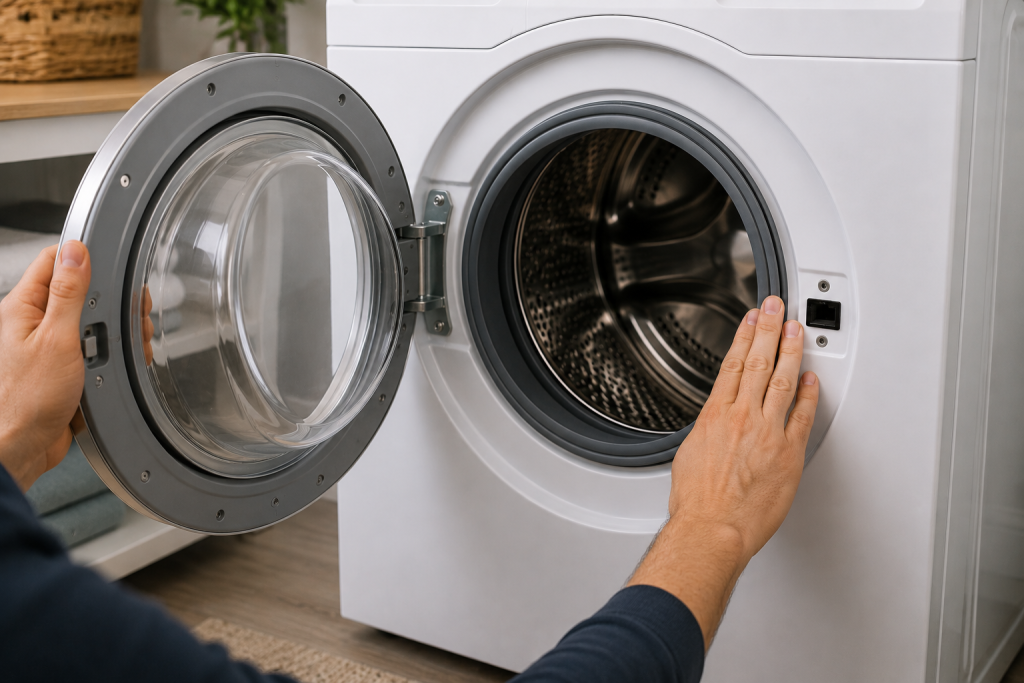

Step 2: Check the Washer Door Alignment
Why This Matters
If the washer door is slightly misaligned, the latch may not engage correctly.
How to Inspect It
- Open the washer door fully.
- Check for sagging or uneven gaps.
- Close the door firmly.
- Listen for a solid clicking sound.
Avoid slamming the door, as this can damage the latch over time.

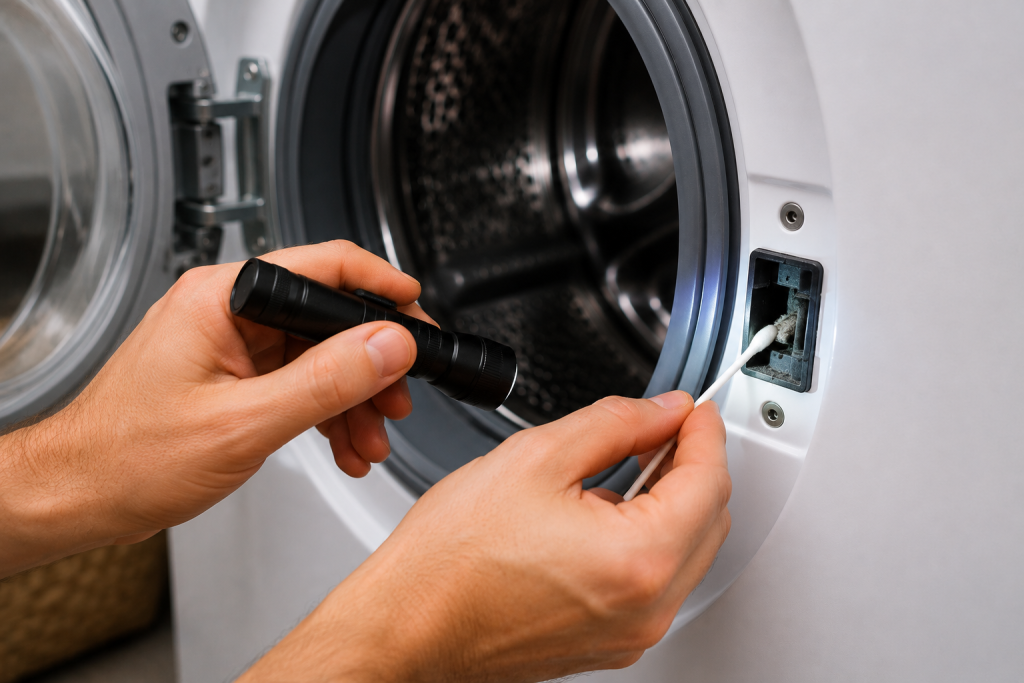

Step 3: Inspect the Door Latch for Debris
Why This Helps
Lint, detergent residue, or small objects can block the locking mechanism.
How to Clean It
- Open the washer door.
- Use a flashlight to inspect the latch area.
- Remove any visible debris.
- Wipe the latch with a soft cloth.
Even small obstructions can prevent proper locking.

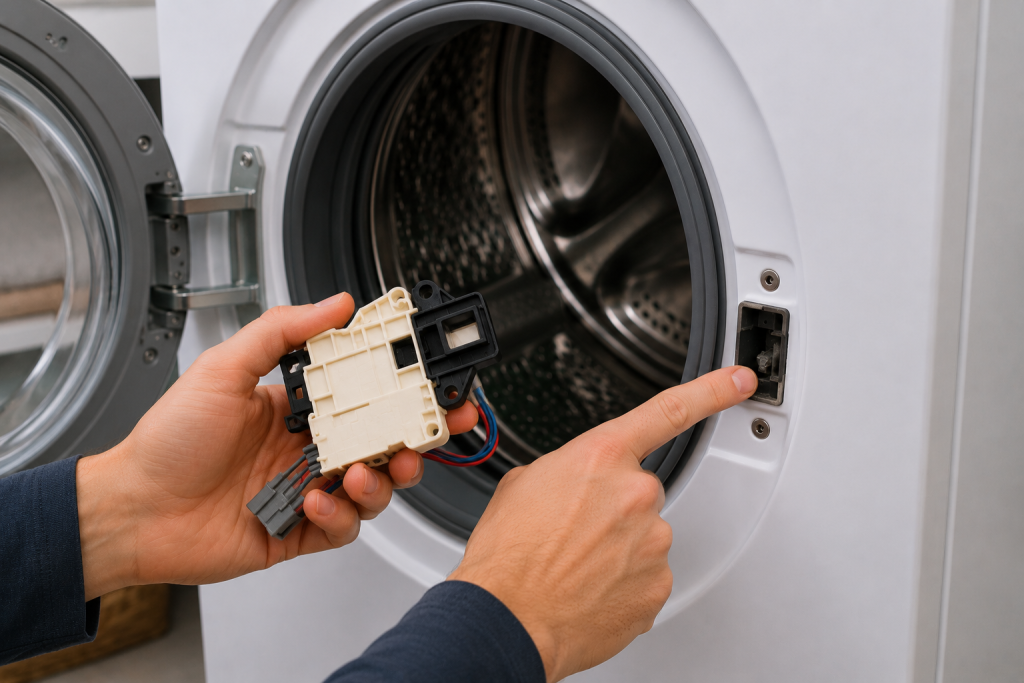

Step 4: Check the Door Lock Assembly
What to Look For
The door lock assembly may become worn or damaged over time.
How to Inspect It
- Unplug the washer.
- Remove the retaining screws near the latch area if accessible.
- Inspect the lock assembly for cracks or broken plastic pieces.
- Check for loose connections.
If the assembly appears damaged, replacement may be necessary.
For additional Whirlpool washer troubleshooting tips, the experts at Whirlpool Product Help provide useful maintenance and support information.

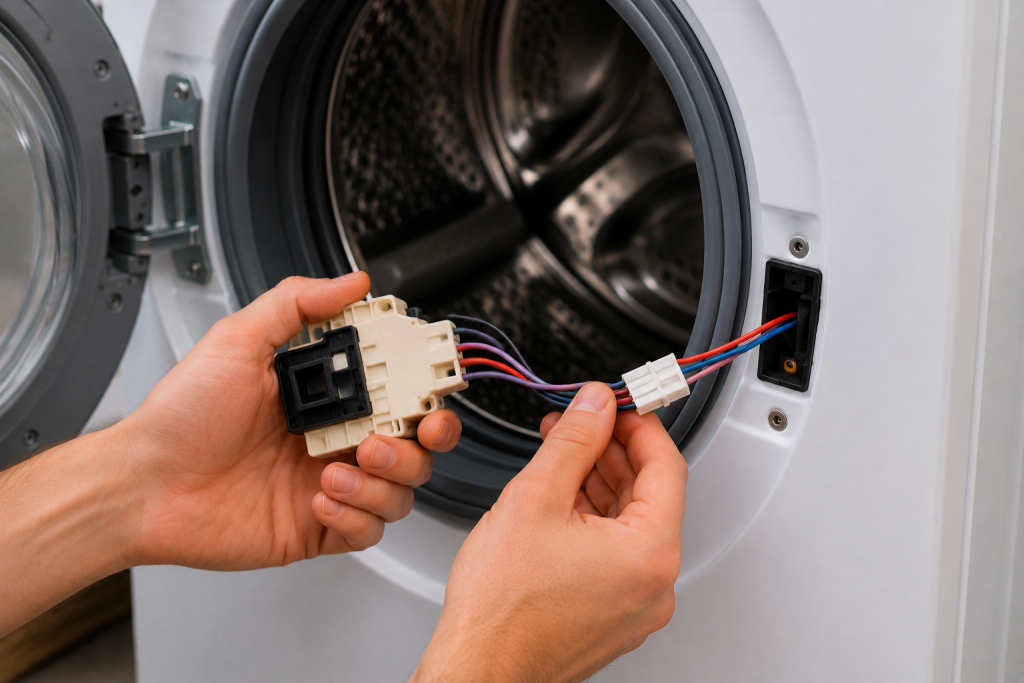

Step 5: Inspect the Wiring Connections
Why Wiring Issues Cause F5E2 Errors
Loose or damaged wires can interrupt communication between the lock assembly and control board.
How to Inspect the Wiring
- Disconnect power to the washer.
- Access the door lock wiring harness.
- Look for loose plugs or damaged wires.
- Reconnect any loose connections carefully.
If you notice burned or damaged wires, professional repair may be required.

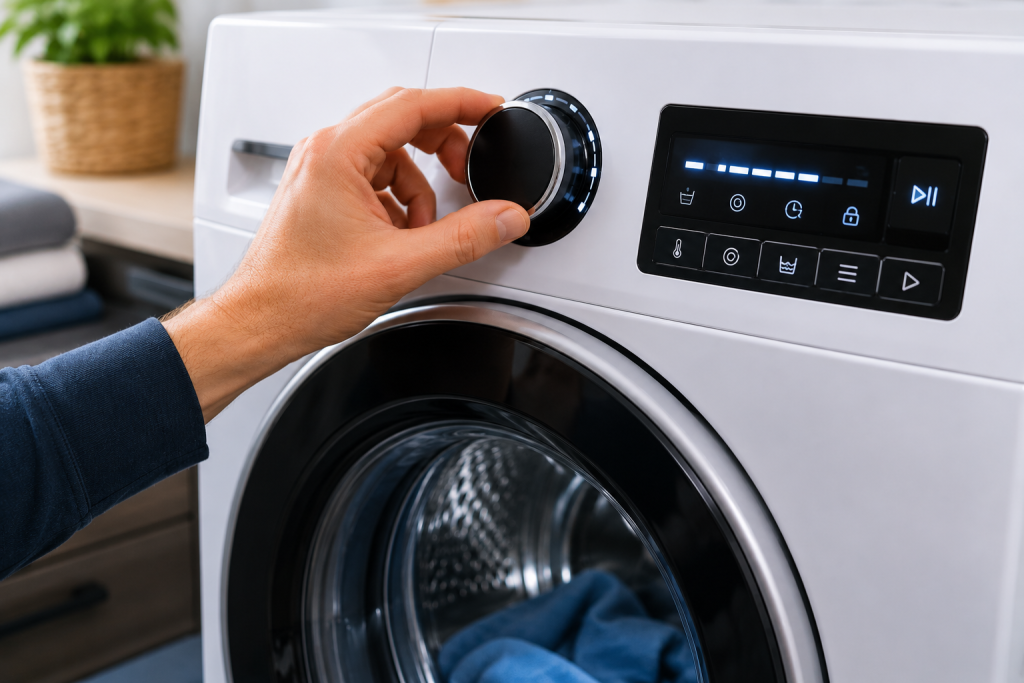

Step 6: Run a Diagnostic Cycle
Why This Helps
Diagnostic mode can help clear temporary software glitches.
Basic Whirlpool Diagnostic Method
- Make sure the washer is plugged in.
- Rotate the cycle selector knob according to your model’s service instructions.
- Enter diagnostic mode.
- Allow the washer to complete the test cycle.
Diagnostic steps vary by model, so check your owner’s manual if needed.
If your washer is also experiencing draining issues, check out our guide on How to Fix Whirlpool Washer F9E1 Error Code.

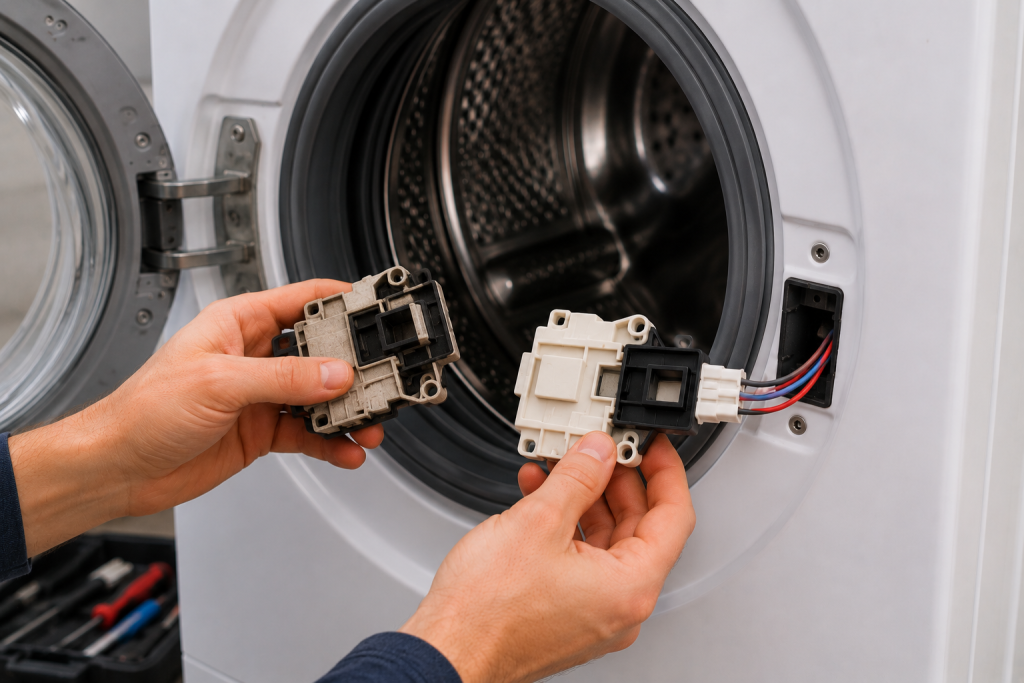

Step 7: Replace the Door Lock Assembly
When Replacement Is Necessary
If none of the previous fixes work, the door lock assembly itself may have failed.
Basic Replacement Steps
- Unplug the washer.
- Remove the retaining clamp around the door boot.
- Access the lock assembly.
- Disconnect the wiring harness.
- Install the new part.
- Reassemble the washer and test operation.
Make sure the replacement part matches your Whirlpool washer model number.
How to Prevent Whirlpool Washer F5E2 Errors
You can reduce the chances of future door lock problems by:
- Avoiding slamming the washer door
- Cleaning the latch area regularly
- Not overloading the washer
- Keeping moisture buildup under control
- Inspecting door components periodically
Routine maintenance helps extend the life of your washer.
When to Call a Professional
You may need professional appliance repair if:
- The washer door remains locked
- The error returns repeatedly
- Wiring damage is present
- The control board may be defective
- The washer will not power on
A technician can properly diagnose electrical or control board issues.
Frequently Asked Questions
Can I still use my washer with the F5E2 error code?
Usually no. The washer may not operate safely if the door lock system is malfunctioning.
Why does my Whirlpool washer keep showing the F5E2 error code?
The Whirlpool washer F5E2 error code usually appears when the washer cannot properly lock or unlock the door during operation.
How much does it cost to replace a Whirlpool washer door lock?
The part itself often costs between $50 and $150 depending on the model.
Can unplugging the washer fix the F5E2 error?
Sometimes. A power reset can clear temporary software glitches.
Does overloading the washer cause door lock problems?
Yes. Heavy loads can place extra stress on the door and latch mechanism.
Final Thoughts
The Whirlpool washer F5E2 error code is commonly caused by a door lock issue, but many homeowners can fix it without professional help. Starting with simple steps like resetting the washer and cleaning the latch area can often solve the problem quickly.
If the issue continues after troubleshooting, replacing the door lock assembly is usually the next step.
